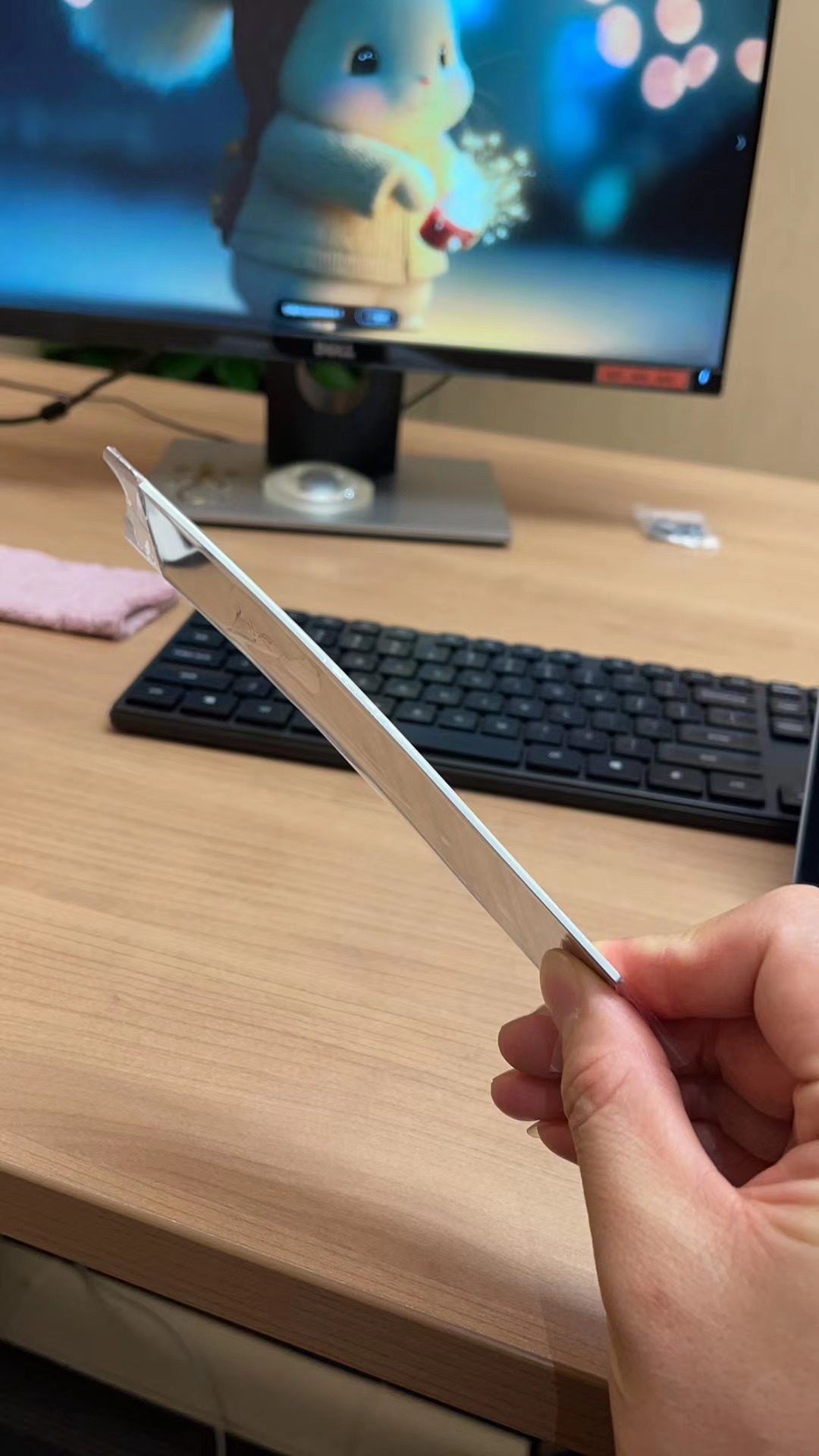

HUD heads-up display free curved lens MJ2001
HUD head-up display glass, HUD head-up display lens, plastic free-form surface lens, glass free-form surface lensHUD projection glass, HUD projection lens, AR free-form surface lens, HUD reflector, HUD cold mirror, HUD concave reflectorHUD convex mirror, HUD half mirror, HUD optical lens, HUD optical hand board
Product details
| Model Number | MJ2001 |
| product name | concave mirror |
| Optical mirror surface S surface roughness | <0.012um |
| Platform roughness | <3.2um |
| Optical mirror surface S surface quality standard | MIL-PRF-13830B 80/50 |
| Optical mirror S surface coating requirements | Rave≥850% @λ=420-680nm |
| angle of incidence | 25±10° |
| Coating adhesion and weather resistance requirements | QB2682-2005 |
| Optical Mirror Surface S Surface Accuracy | Do it in 1/2 caliber |
| The maximum vector deviation value between any point on the bus and the ideal point | △PV<30um |
| In the full aperture, the maximum vector deviation between any point on the bus and the ideal point | △PV<60um |
| Use | car head display, car head display glass, car projection glass, car head display glass |
HUD head-up display technology uses free-form glass to project car-related information onto the windshield. HUD free-form mirror uses advanced coating technology and micro-nano processing technology to make high-precision lenses. The image has no distortion, the image is clear, and the viewing angle is large.
